OddString



Diego Di Carlo  • Jorge Madrid Portillo

RTIP • SMC8 2016 • AAU • CPH



ddicar16@student.aau.dk •  jmadri15@student.aau.dk

Real-Time Interaction and Performance

INTRODUCTION

OddString turns the guitar/bass into an hybrid instrument

Easily attachable to the instrument body

MIDI device with two modes of operation:

String Mode

Controller Mode

Triggered with piezo

Maps MIDI pitch-bend

Discrete scale

Continuous scale

Legato

Relative* / Absolute

OUTLINE

  • Motivation and Goals



  • Similar Projects



  • Design and Interaction



  • Implementation (Electronics + Software)



  • Future Work and Conclusion

MOTIVATION & GOALS

To enhance/expand expression

To improve/simplify traditional controllers

Do not force players to modify technique too much

Because it is FUN!

SIMILAR PROJECTS

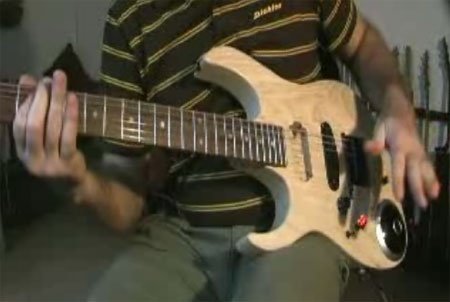

Carlos Vamos AIR

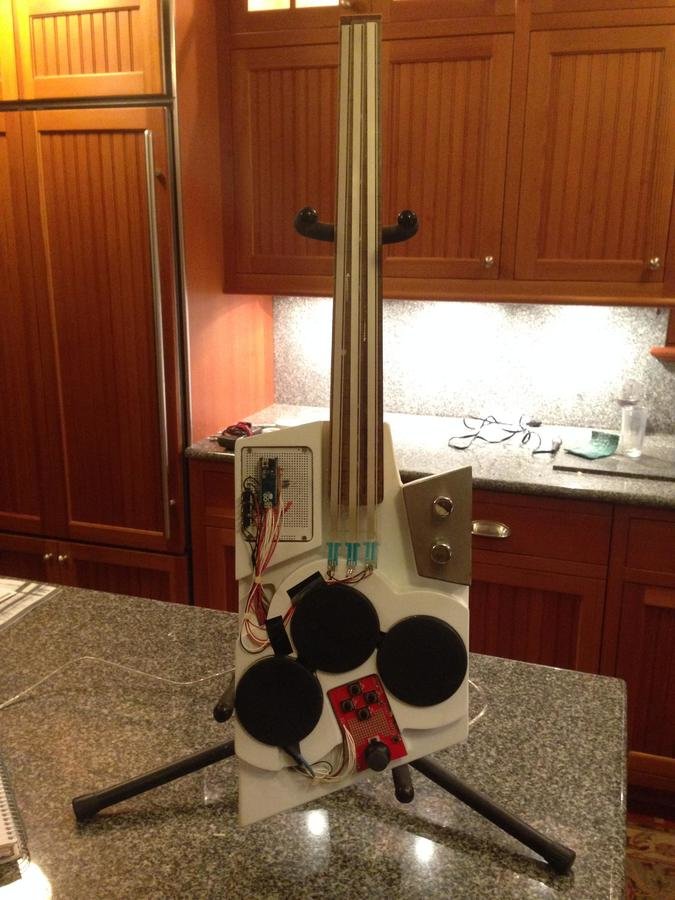

Arduino Ribbon guitar

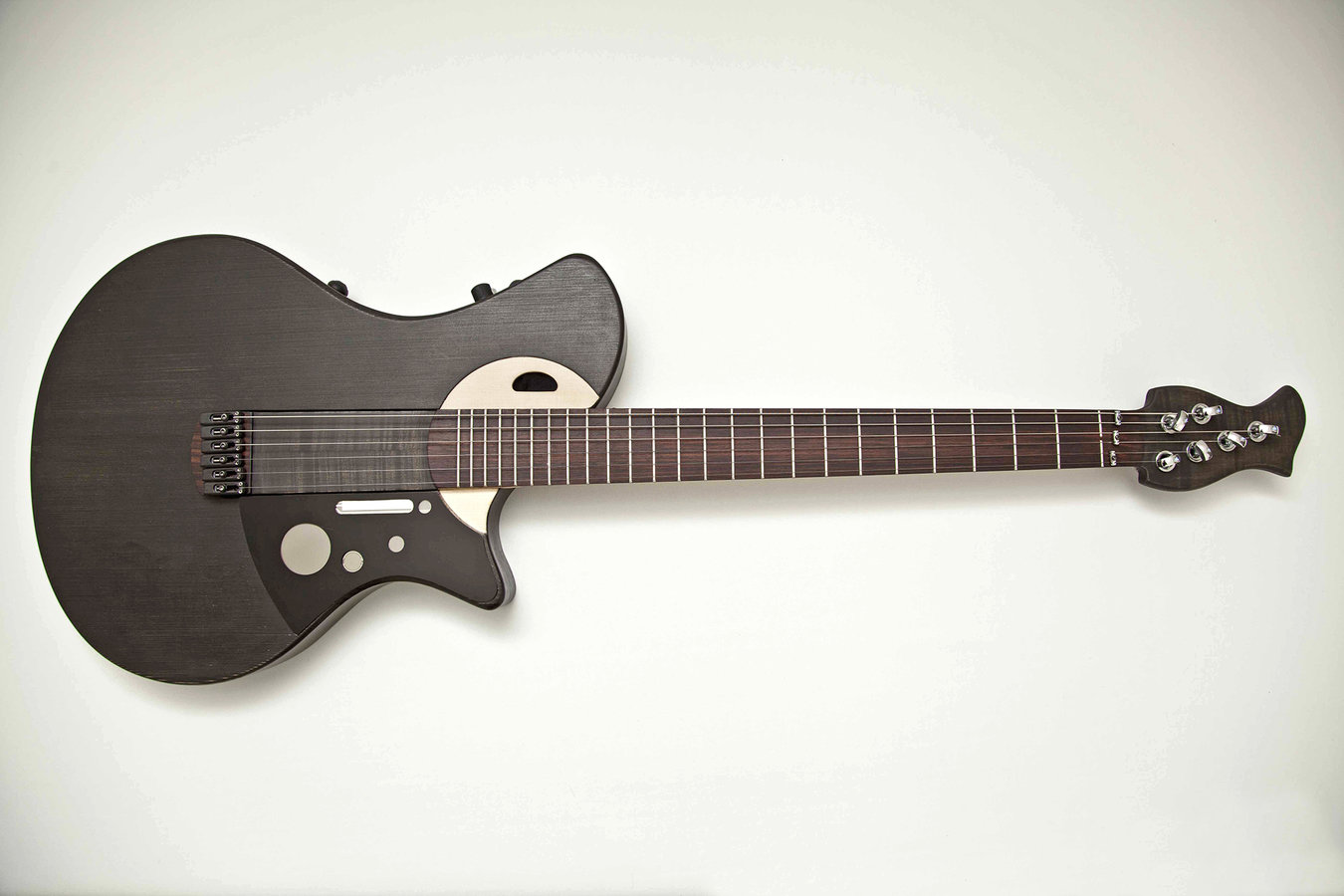

SENSUS Guitar

PROS & CONS

DESIGN & INTERACTION

NIME MODEL

DESIGN & INTERACTION

MINUET FRAMEWORK

Control

Mapping

Input

Feedback

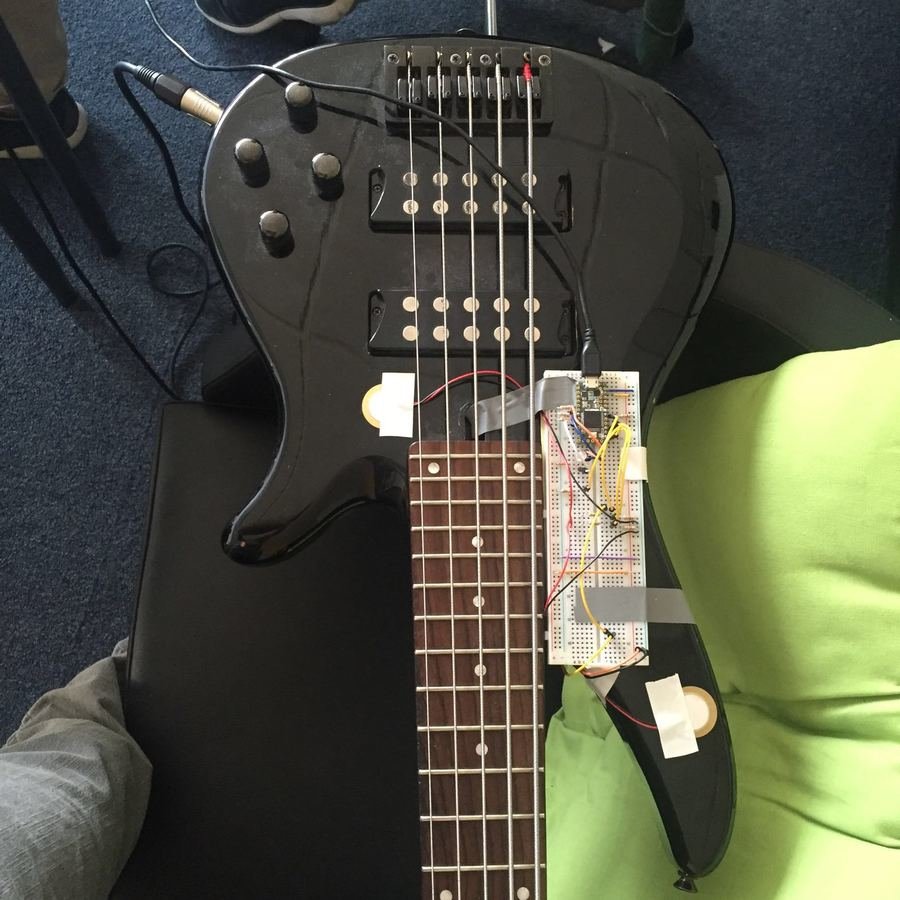

IMPLEMENTATION

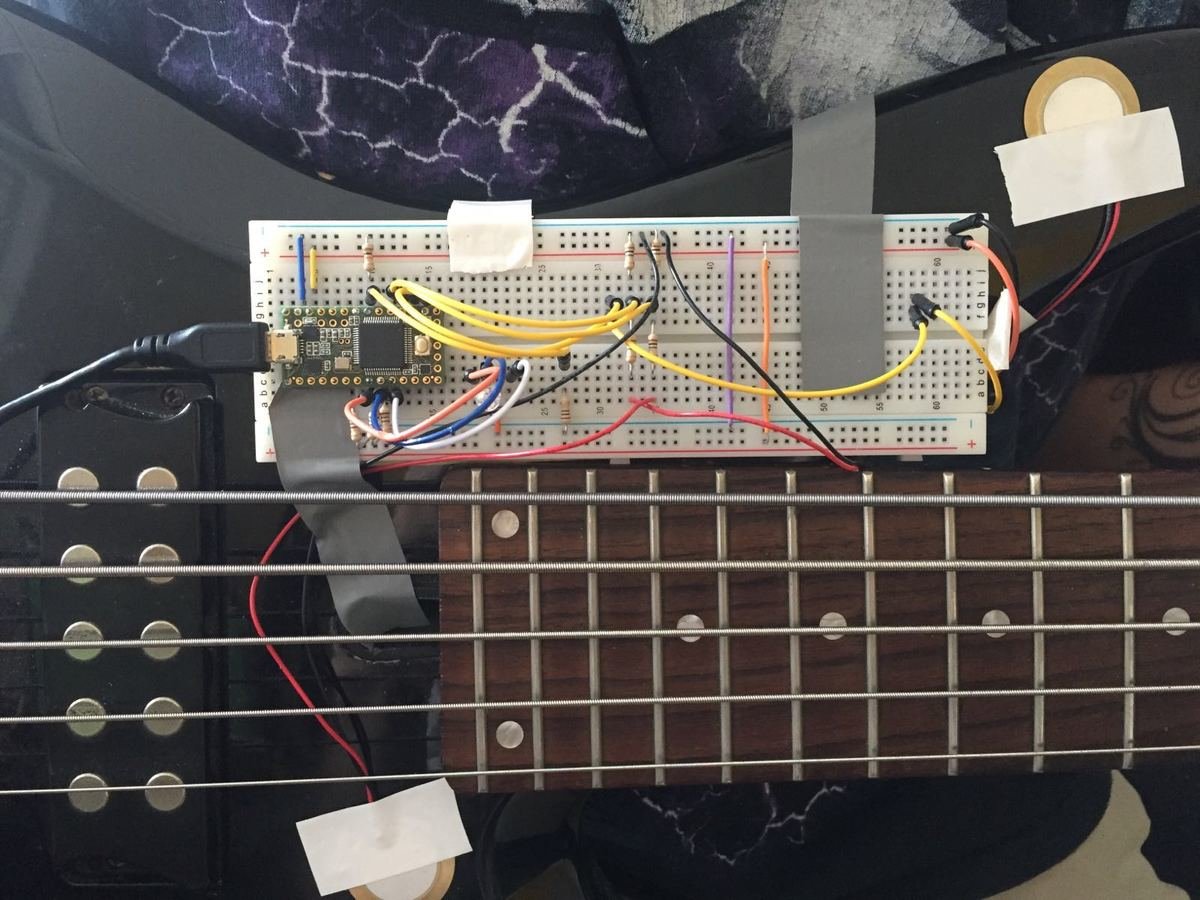

ELECTRONICS

Teensy 3.2

Piezos

RGB led

Softpot

IMPLEMENTATION

SOFTWARE

Full arduino/teensy implementation

Calibration of the softpot

Teensy is in charge of MIDI

Problems with piezos

and onset detection

FUTURE WORKS

IMPROVEMENTS

KICKSTARTER

+
++

Piezo onset detection

Easily attachable

Evaluate the interaction

Target musicians looking for new ideas

Reduce latency

Better algorithm, circular buffers

Packaging

CONCLUSION

Can work for players who want to extend

their musical possibilities

May not work for all genres

Players need training with the controls

to master this new device

Thank you

Diego Di Carlo

Jorge Madrid Portillo

Aalborg University CPH 2016
